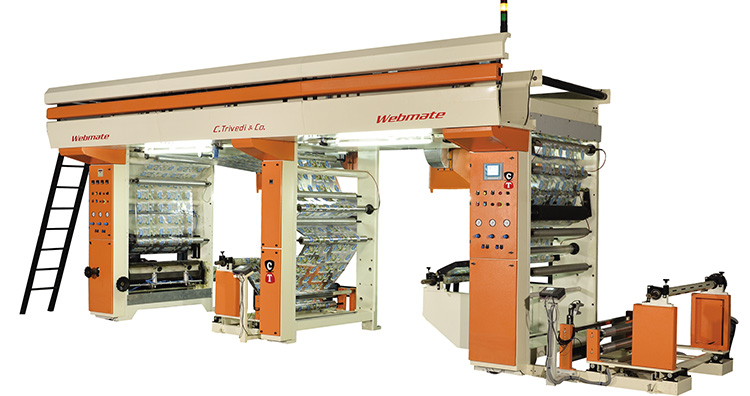

High Speed (Solvent Base)
Webmate SB
Lamination Machine (Solvent Base)
C. Trivedi Present the ultimate New Invention of Solventbase Lamination machine - Webmate, which is easy to handle, install and oprate and fit in small place it takes care of large Quality of Lamination Meterial.

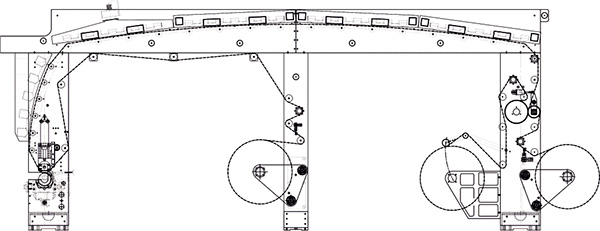

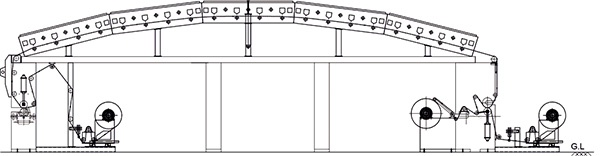

Solventbase Lamination Web Layout

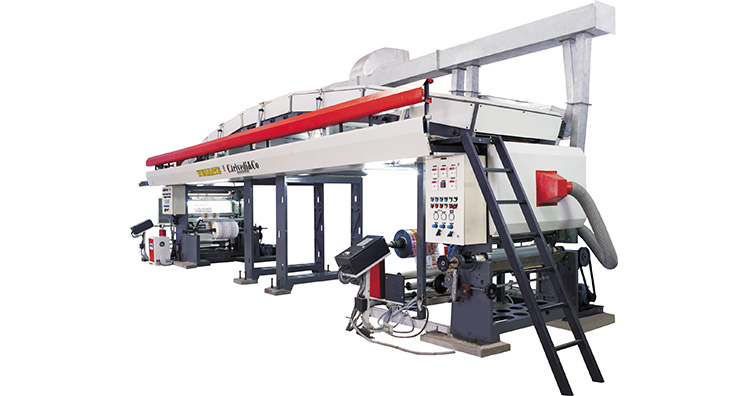

Solventbase Lamination Eco Model
Salient Features
- Heavy duty C.I. Cast iron & Heavy fabricated structure
- Gravure type coating system
- Fully insulated imported special glass wool sheet fitted in the panel (Top side & Bottom) For controlling heat loss
- One & One Slit type counter air flow arrangement, Divided equally are placed against roller for proper web support
- Exhaust are distributed through-out the length of drying chamber & individual exhaust duct for each zone
- Digital temperature controller with indicator & PT 100 sensor for each Zone
Optional Attachment
- Air Shaft
- Pull roll assembly (Infeed drive)
- May bar / Reverse roll, Air knife Three roll
- Wet Lamination arrangement
- Chill Roll
- Ink Circulating with Viscosity Control

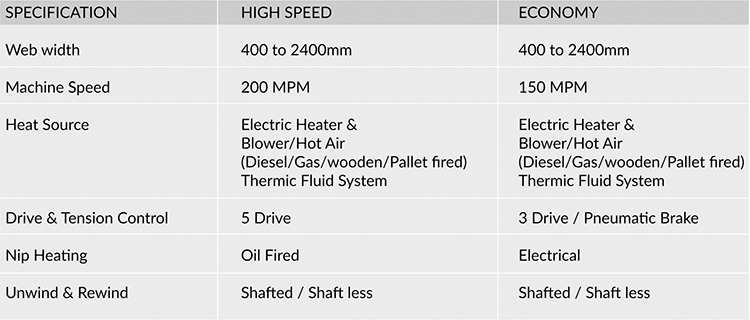

Technical Specification
