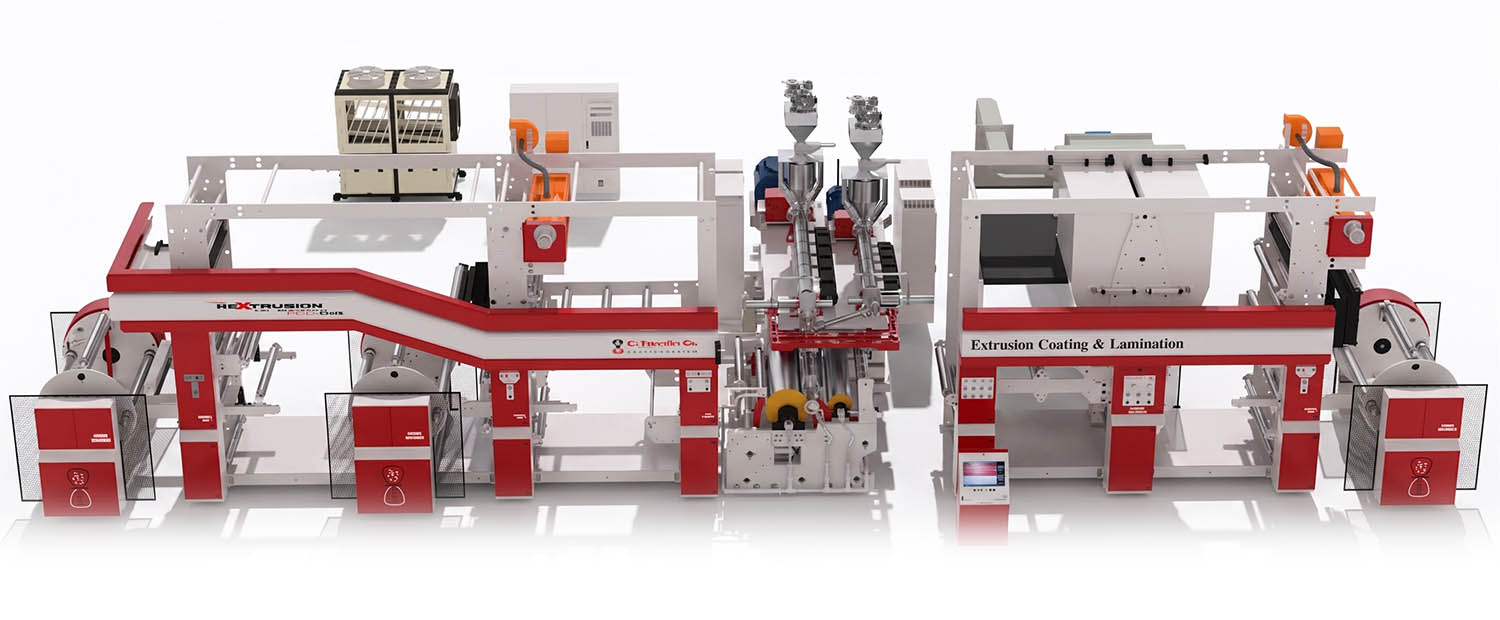

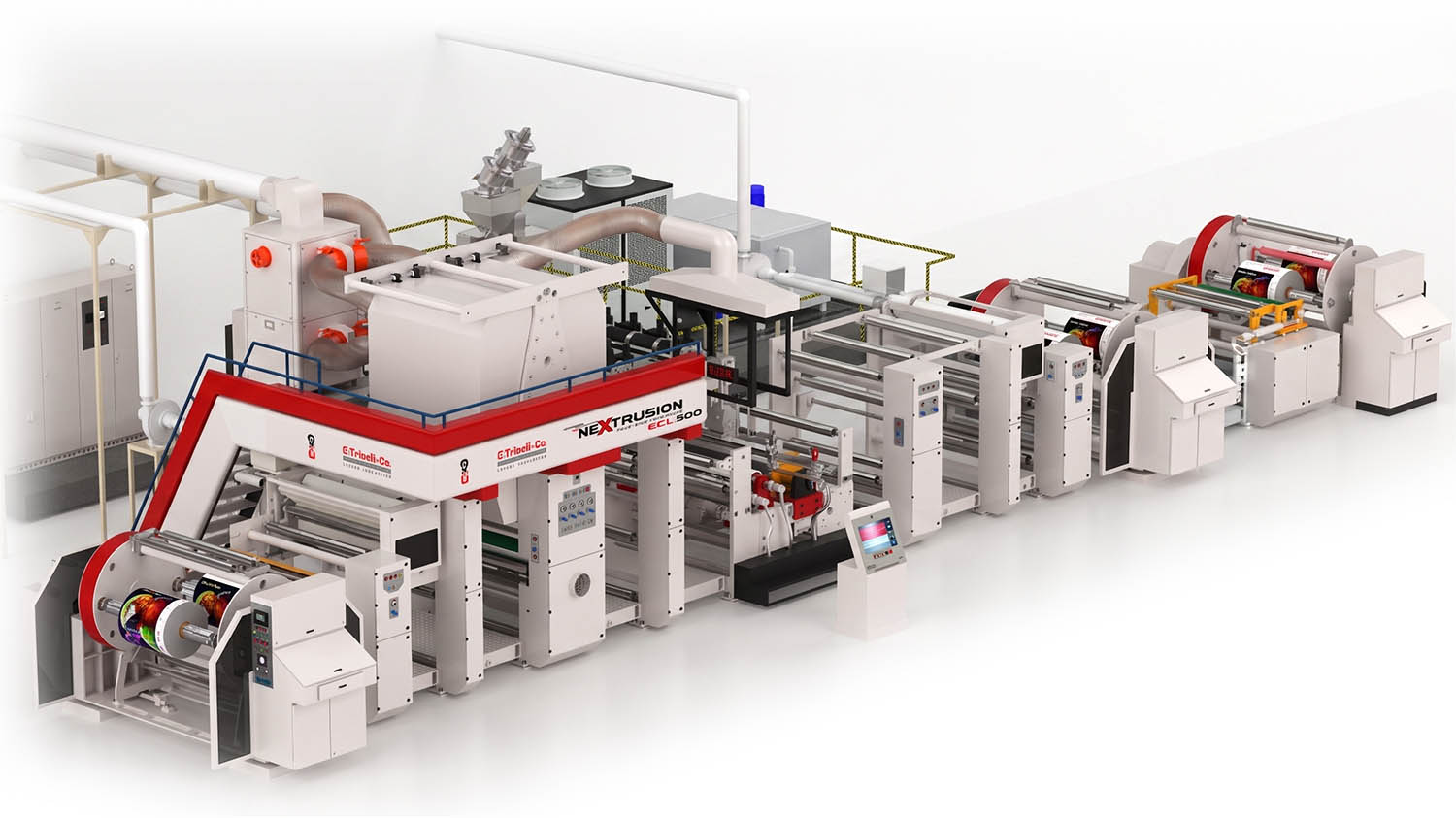

NEXTRUSION ECL 300

Extrusion Coating Lamination

Extrusion Coating Lamination

NEXTRUSION ECL 300

Extrusion Coating Lamination

C. Trivedi & Co is one of the reputed manufacturers & suppliers of converting machineries like Rotogravure Printing machine, various type of Coating Lamination machine and Slitting & rewinding machine since 1980. Our Esteemed & Satisfied Clientele across the world has encouraged us to develop the new ECL. With more than 5 decades of experience in Designing & manufacturing along with technically qualified team, C. Trivedi & Co has developed the latest ECL for the utmost benefit of its users.

Introducing Nextrusion ECL 300 – the latest, next level Extrusion Coating & Lamination machine for flexible packaging industries.

Salient Features

Actual production speed of 250mpm.
Linear splice @ maximum speed of unwind & rewind ensures handling of all critical substrates.
Center and Gap winding at rewind.
Foil unwinder close to composite unit.
Tension range from 30N-600N ensures handling of higher thickness range.
Positive nip isolation at unwind & rewind ensures to achieve optimum process web handling as per process requirement.
High efficient anchor coating station.
Edge guide system for both unwind & rewind.
Rigid and vibration less Servo based X, Y and Z movement of co-Extruder ensures recall of die to original position of stored job.
Programable die oscillation ensures much efficient edge width control.
2 Extruder 3 layer with feed block combination ABA, BAB, AAB, BBA and run of either Extruder.
Easily web wrap angle control in and out of composite / laminating unit.
Close loop load cell based GPM control of Extrusion section.
Close loop precise dancer based and load cell based control web handling by use of latest servo motion drive.
Repeat length measurement.
Static monitoring at rewind.
SCADA based machine control ensures one touch recall of all process parameters and MIS.
Remote support via internet.

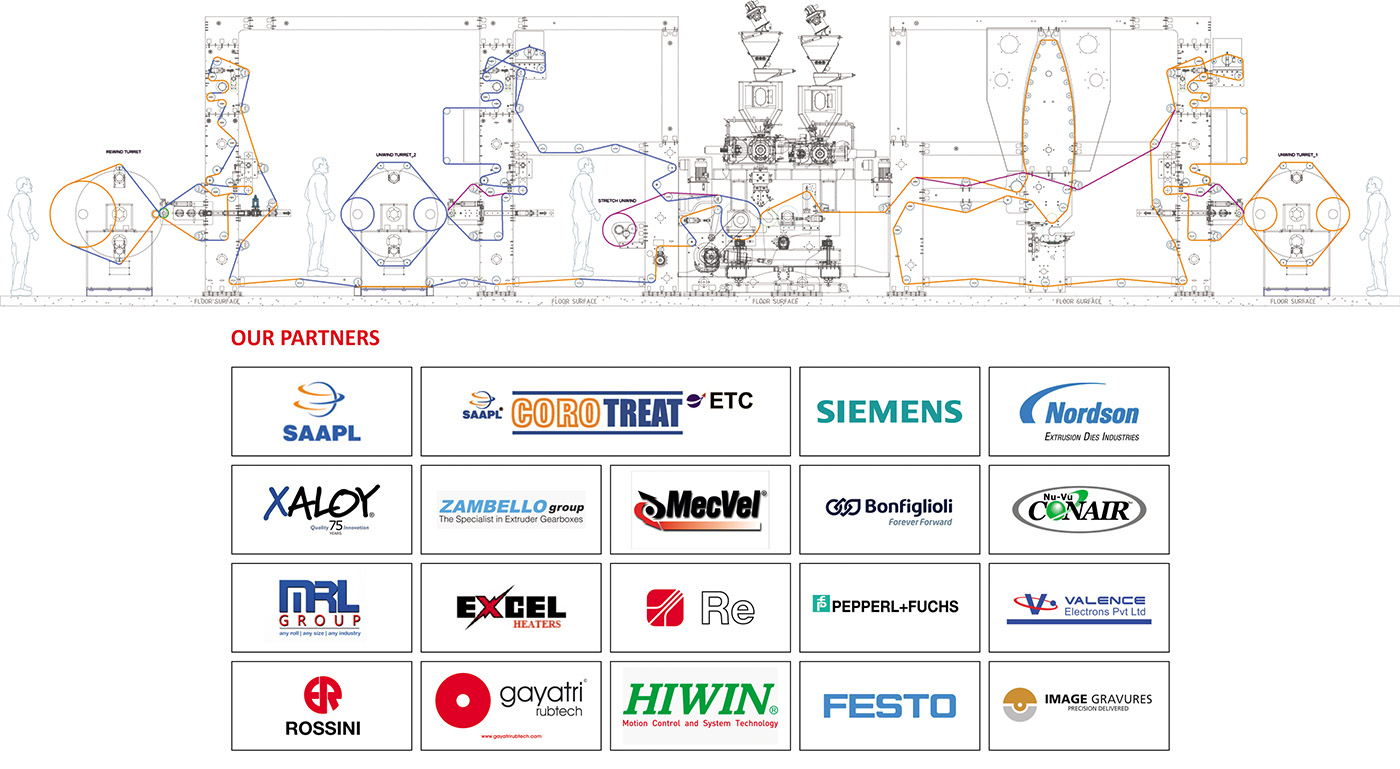

Many other features are existed... Major bought out items

Actual production speed of 250mpm.
Linear splice @ maximum speed of unwind & rewind ensures handling of all critical substrates.
Center and Gap winding at rewind.
Foil unwinder close to composite unit.
Tension range from 30N-600N ensures handling of higher thickness range.
Positive nip isolation at unwind & rewind ensures to achieve optimum process web handling as per process requirement.
High efficient anchor coating station.
Edge guide system for both unwind & rewind.
Rigid and vibration less Servo based X, Y and Z movement of co-Extruder ensures recall of die to original position of stored job.
Programable die oscillation ensures much efficient edge width control.
2 Extruder 3 layer with feed block combination ABA, BAB, AAB, BBA and run of either Extruder.
Easily web wrap angle control in and out of composite / laminating unit.
Close loop load cell based GPM control of Extrusion section.
Close loop precise dancer based and load cell based control web handling by use of latest servo motion drive.
Repeat length measurement.
Static monitoring at rewind.
SCADA based machine control ensures one touch recall of all process parameters and MIS.
Remote support via internet.

Provision For

Thickness measurement.
Die is upgredeable and integration with thickness measurement control.
Provision for powder spray.
