GRAPHICA HIGH SPEED MLS / ELS
Rotogravure Printing Machine 2500
GRAPHICA Series is a newly developed machine in the Rotogravure Printing Machine category.
It is a product developed with the help of continuous research and development.

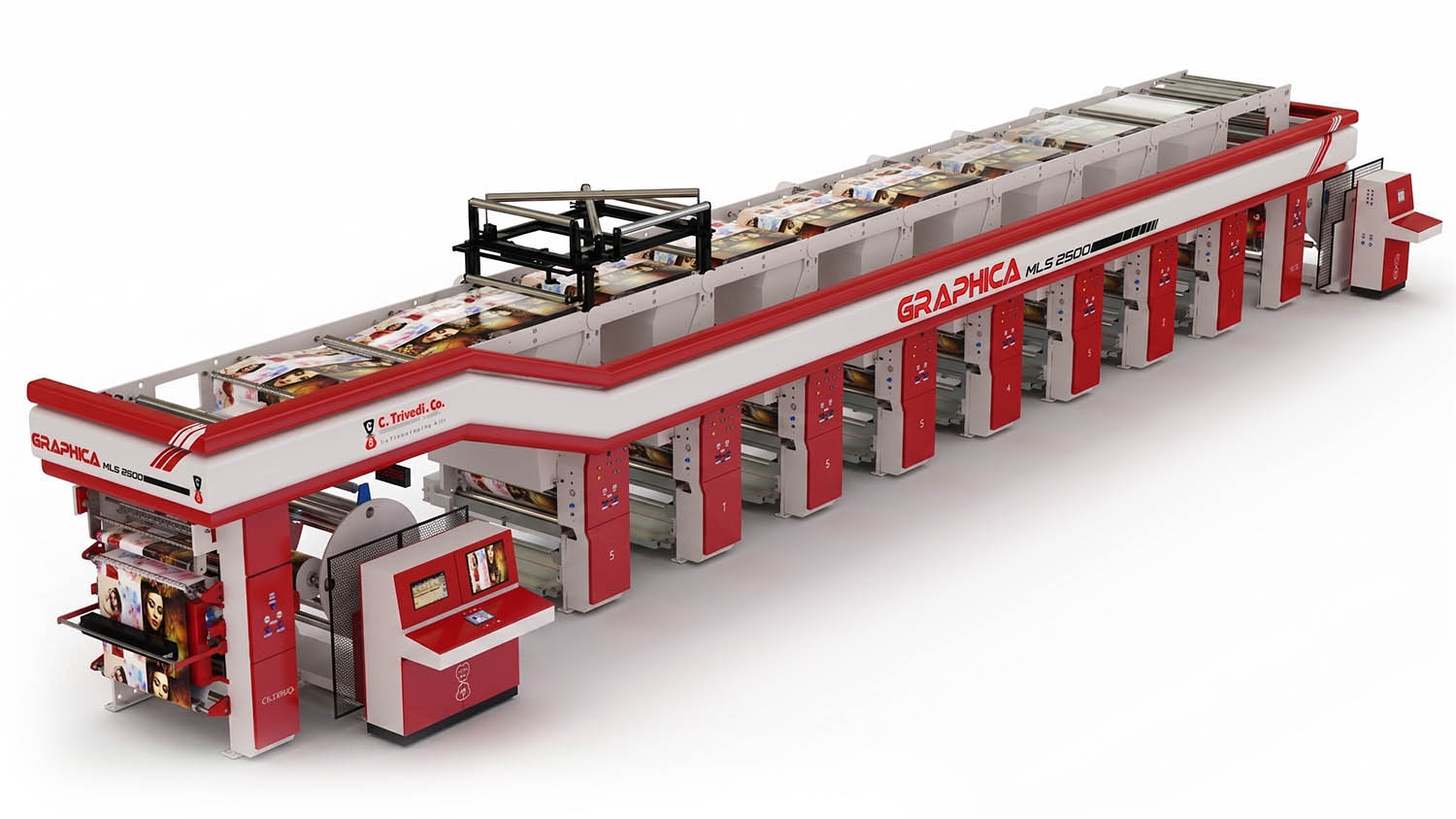

Graphica 2500 is the most advanced Rotogravure Printing Machine developed by the C. Trivedi & Co. it not only holds aesthetic value but also delivers straight forward brilliant solutions which ensure high optimization and dependability together with end product quality and versatility, meeting the demand of a fast evolving business.
Salient Features
- Heavy duty & highly precision machined structure to give accurate printing at high speed
- Unwind & Rewind Turret Type at both end are Heavy duty constructed with imported safety chucks, Shafts, Servo Motors with Linier Type Auto Splicing at full speed With Ultrasonic edge guide.
- Machine can be provide without Turret with Shaft less / Shafted unwind Rewind.
- Machine is Heaving option of fix type Ink Circulation System with Tray & Tank. Or Can be provided with Ink Trolley system with ink circulation by pneumatic or Flame Proof Motorized Pump with Tank.
- Machine is fully equipped with Unwind & Rewind static control + special type explosion proof static bar provided before & after printing on each station.
- Machine can be provided in MLS / Shaft Less & ELS design.
- Special Type dancer system provide for Unwind & Rewind Tension Control with individual air tank for continuous air.
- Machine can provided with Imported Auto Registration Control & web video system.
- Skada base machine controlled ensure one touch recall all process parameters & MIS.
- Remote support via Internet.

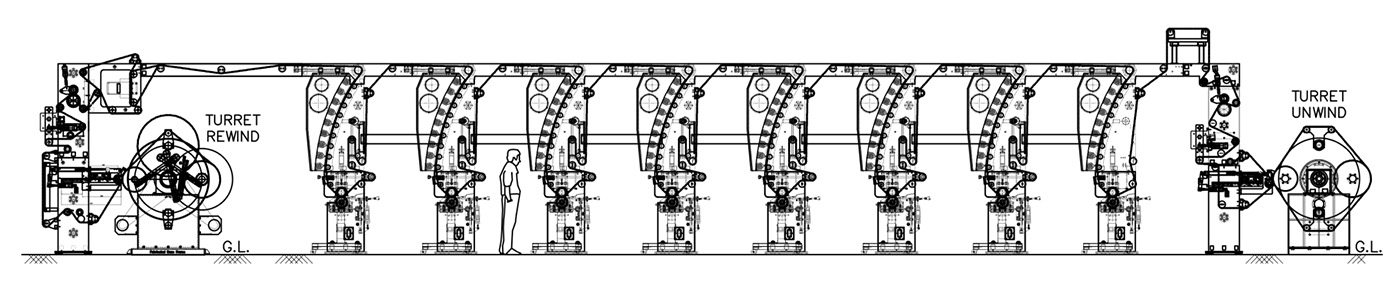

Layout Drawing For 8 Colour MLS / ELS Machine with Purret
Technical Specification
- Maximum Web width : 800 / 1000 / 1200mm
- Maximum operating Speed : 250 MPM
- Print Repeat Range : 450 to 1000mm (1200mm on demand)
- Printing Materials: Foil, Paper, Polyester, BOPP, PP, PVC, LDPE etc..
- Drying Source : Electrical / Thermic Fluid / Gas
- Dryer : Closed Type single side drying oven
- Dimension of Printing Station : 650 x 3100 x 55 & 30mm
Optional Attachment
- Ink Viscosity Control & Ink Cooling System
- Chilling Roll on each station
- Ink Print defect system
- ESA System on each station.
- Turn bar system with web guide & Air flow in turning pipe.
